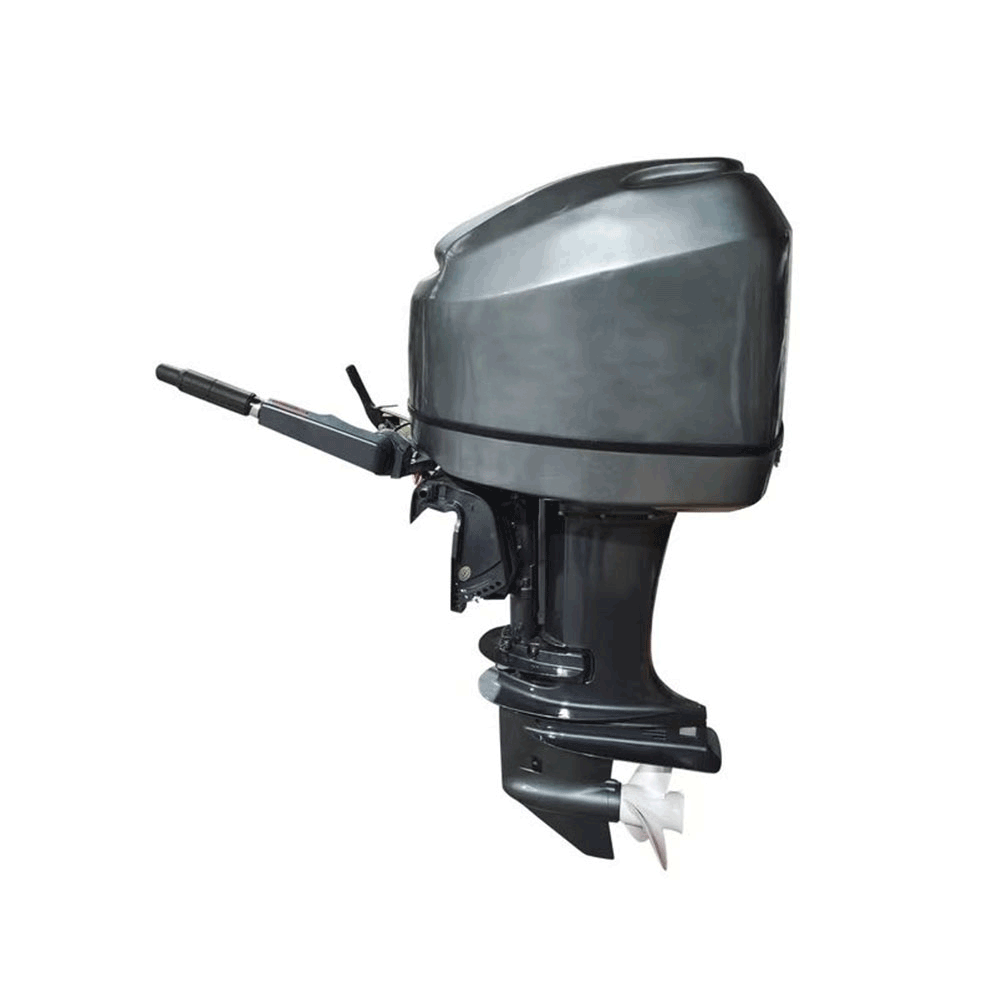

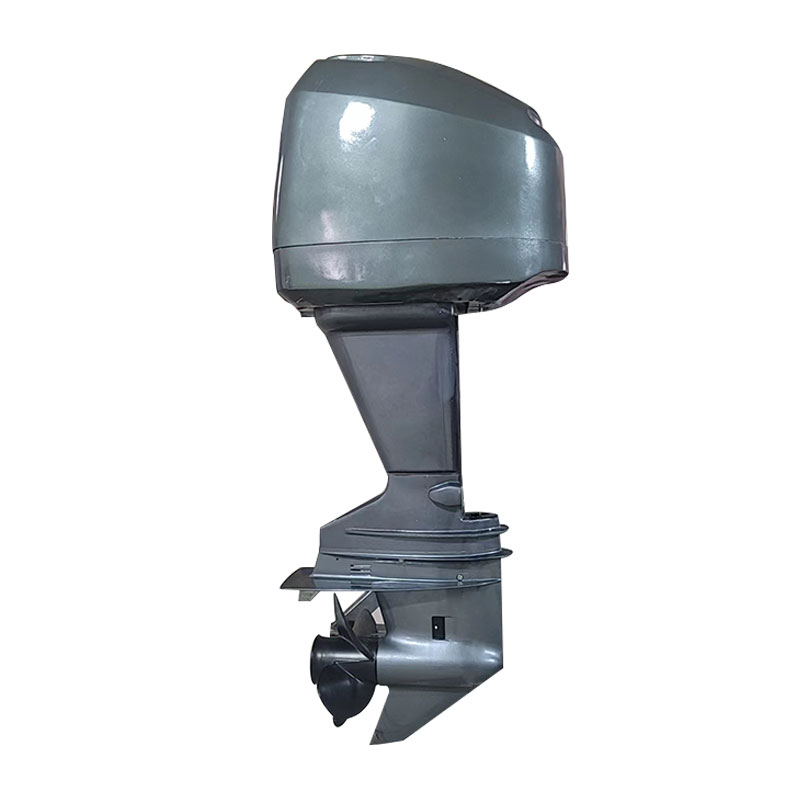

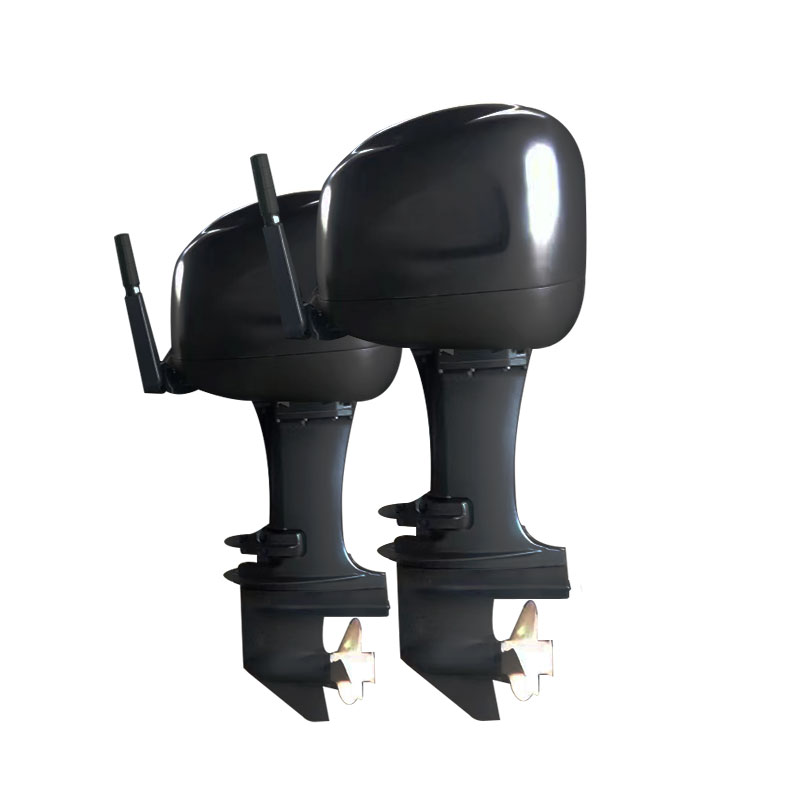

OUTBOARD DIESEL ENGINE (WATER COOLED)
1. Superior heat dissipation effect: The water cooling system takes away the heat generated by the engine through liquid, which can maintain a low operating temperature under high load conditions and prevent overheating.
2. Wide applicability: In high temperature or long-term operation, the water cooling system can better maintain stable temperature and is suitable for long-distance navigation.
3. Stable operation: The water cooling system can provide a more uniform temperature distribution, reduce the thermal stress of the engine, and improve the overall stability and lifespan of operation.
4. Low noise: Water cooling systems can usually reduce engine noise, making the ship run quieter and improving passenger comfort.
5. Strong power: The water-cooled diesel engine is suitable for high-power and high load applications, providing stronger power output and meeting heavy load requirements.
ORD SERIES
Fuel type: Diesel
Gear shift: F-N-R
Recommended gear oil: SAE90#
Gear ratio: 2 (26:13)
| Model | Starting system | Rated power(HP) | Displacement(ml) | Fuel consumption(L/h) | Recommend propeller | Engine type |
|---|---|---|---|---|---|---|
| ORD15D | Electric start+manual | 15 | 560 | 2 | 11 1/4 x 11 | Single cylinder, 4 stroke |
| ORD20D | Electric start | 20 | 720 | 2.0-3.0 | 11 1/8 x 11 | Twin cylinder, 4 stroke |
| ORD25D | Electric start | 25 | 730 | 2.5-3.5 | 11 1/8 x 12 | Twin cylinder, 4 stroke |
| ORD30D | Electric start | 30 | 750 | 2.5-3.5 | 11 1/8 x 12 | Twin cylinder, 4 stroke |
| ORD40D | Electric start | 40 | 850 | 3-4 | 11 1/8 x 14 | Twin cylinder, 4 stroke |

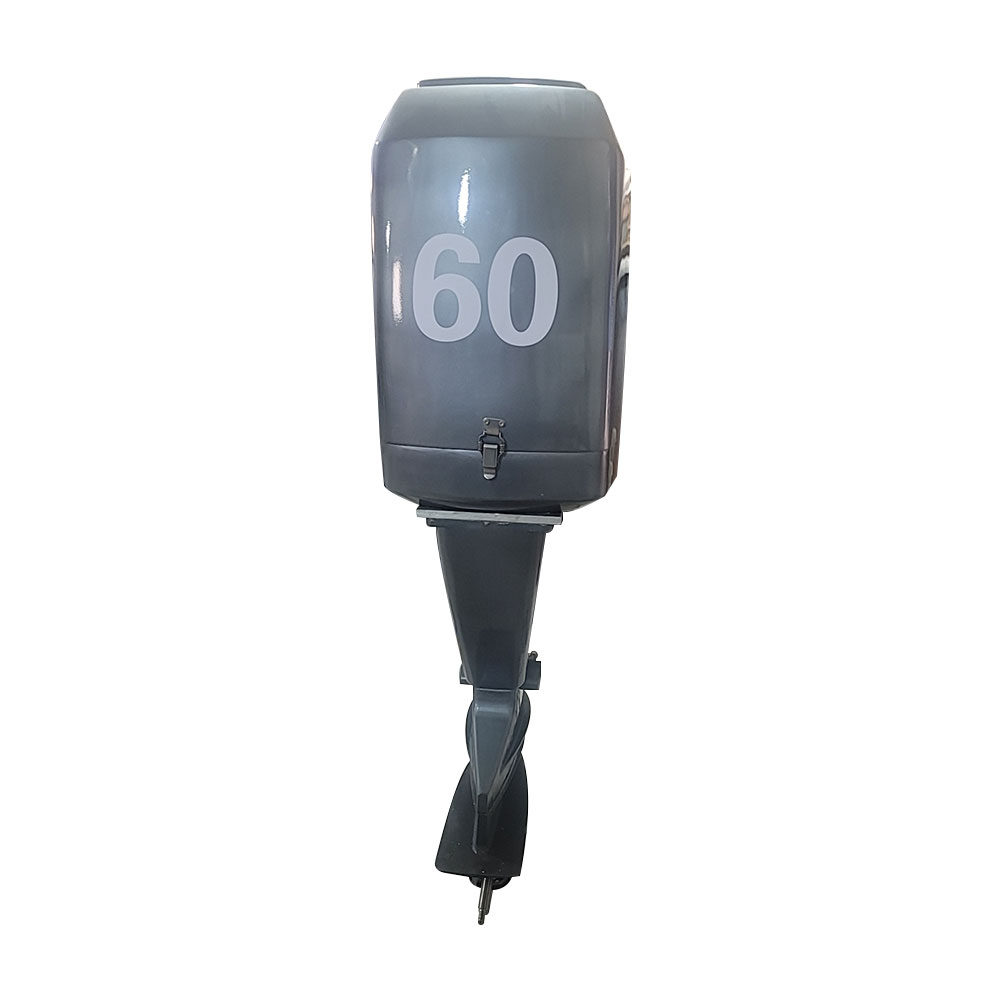

| ORD60D | Electric start | 60 | 1100 | 3.5-4.5 | 13 1/2 x 15 | Twin cylinder, 4 stroke |

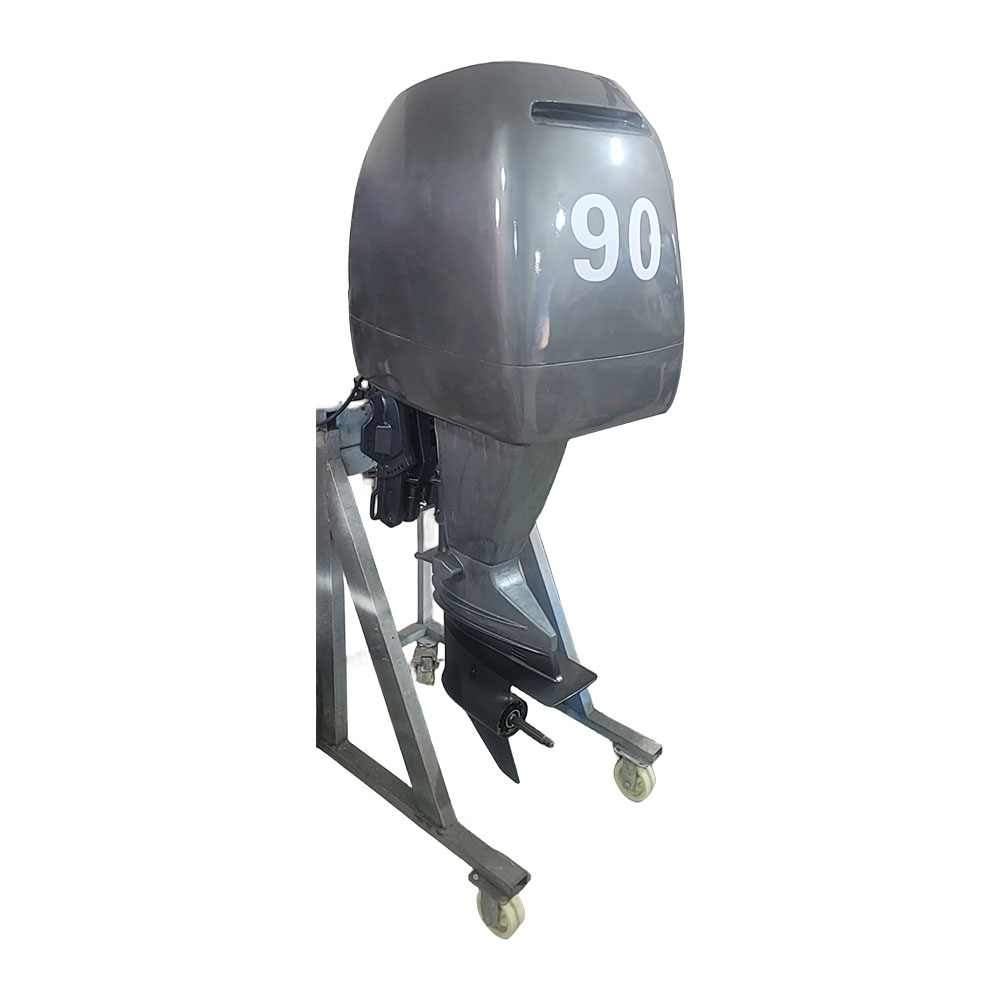

| ORD90D | Electric start | 90 | 1500 | 8.5 | 13 1/4 x 19 | Four cylinder, 4 stroke |
| ORD115D | Electric start | 115 | 2800 | 12.5 | 13 1/4 x 19 | Four cylinder, 4 stroke |

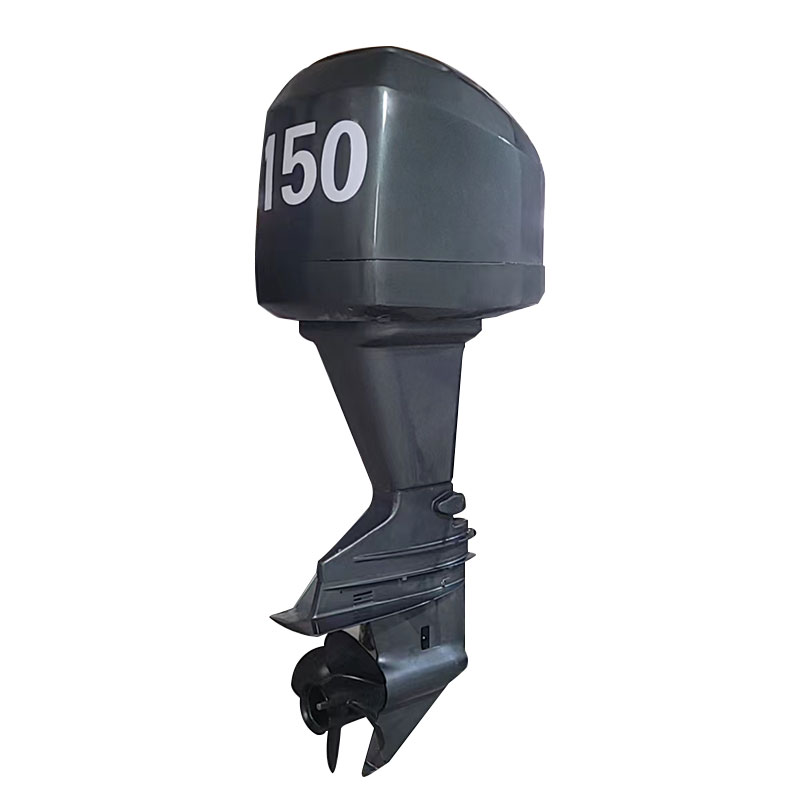

| ORD150D | Electric start | 150 | 3000 | 22 | 16 x 19 | Four cylinder, 4 stroke |
| ORD200D | Electric start | 200 | 3000 | 28 | 16 x 20 | Four cylinder, 4 stroke |
